Barcode scanner X-SY2C

Function

Supports in-depth custom development, supports 1D barcodes and 8 types of 2D barcodes, suitable for medical, supermarket, catering, chain stores, clothing, etc. It boasts comprehensive functions and wide coverage, applicable to almost all scenarios, making it an ideal entry-level solution for all applications.

- Supports UDI medical codes

- Supports adding and hiding prefixes and suffixes by barcode type

- Supports custom character insertion

- Supports online upgrades under Windows

- Supports USB KBW, USB COM, and TTL-232

Parameters

Parameter	Value
X-760E Technical Parameter
Model	X-760E
Item	Wired 2D Barcode Scanner
Physical Parameter
Material	ABS+PC
Power Supply	DC 5V ±5%
Power Consumption	952mW（working）,512mW（standby）,1105mW（maximum）
Weight	121g±5g（Without cable）

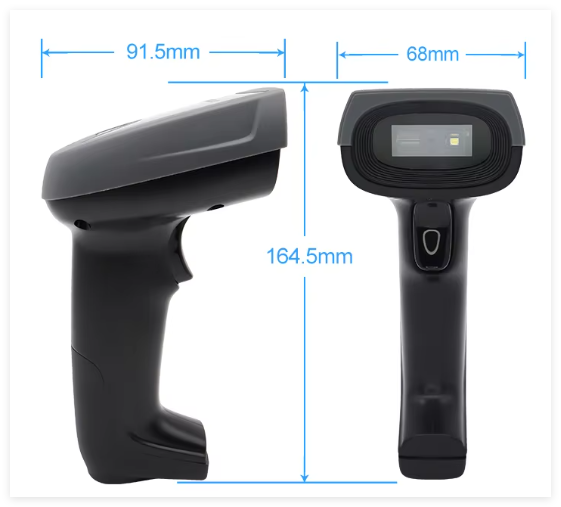

Size	LWH：170 * 70 * 88（unit:mm）
Color	Grayish white;Black
Performance Parameter

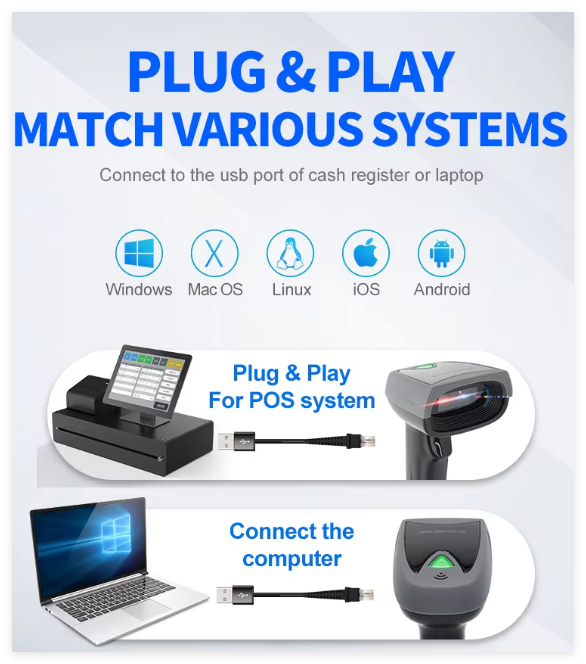

Interface	USB,（RS232 can be customized）
System Supported	Linux，Android，Windows XP、7、8、10，MAC
Language Supported	US English; Belgium; Finland; France; Germany;Italy; Japan; Korea; Norway; Spain; Sweden; Switzerland; UK; Turkey; Czech; Poland; Russia; Thailand; Vietnam; Portugal; Brazil; Greece; Hungary; Romania; Slovakia; Slovenia; Serbia; Croatia; Bulgaria; Ukraine; Lithuania; Latvia; Estonia; Bosnia; Herzegovina; Macedonia; Montenegro; Albania; Kosovo; Cyprus; Malta; Luxembourg; Monaco; Andorra; San Marino; Vatican City; Liechtenstein; Iceland; Ireland; Scotland; Wales; Northern Ireland; Canada; USA; Mexico; Argentina; Bolivia; Chile; Colombia; Ecuador; Guyana; Paraguayay; Peru; Suriname; Uruguay; Venezuela; Australia; New Zealand; South Africa; Egypt; Nigeria; Kenya; Ghana; Morocco; Algeria; Tunisia; Libya; Sudan; Ethiopia; Somalia; Uganda; Tanzania; Rwanda; Burundi; Malawi; Zambia; Zimbabwe; Botswana; Namibia; South Sudan; Cameroon; Ivory Coast; Mali; Senegal; Guinea; Sierra Leone; Liberia; Burkina Faso; Niger; Chad; Central African Republic; Congo; Democratic Republic of the Congo; Gabon; Equatorial Guinea; São Tomé and Príncipe; Angola; Mozambique; Madagascar; Mauritius; Seychelles; Comoros; Mauritania; Western Sahara; Bahrain; Kuwait; Oman; Qatar; Saudi Arabia; United Arab Emirates; Yemen; Iraq; Iran; Israel; Jordan; Lebanon; Palestine; Syria; Turkey; Armenia; Azerbaijan; Georgia; Cyprus; Malta; Luxembourg; Monaco; Andorra; San Marino; Vatican City; Liechtenstein; Iceland; Ireland; Scotland; Wales; Northern Ireland; Canada; USA; Mexico; Argentina; Bolivia; Chile; Colombia; Ecuador; Guyana; Paraguayay; Peru; Suriname; Uruguay; Venezuela; Australia; New Zealand; South Africa; Egypt; Nigeria; Kenya; Ghana; Morocco; Algeria; Tunisia; Libya; Sudan; Ethiopia; Somalia; Uganda; Tanzania; Rwanda; Burundi; Malawi; Zambia; Zimbabwe; Botswana; Namibia; South Sudan; Cameroon; Ivory Coast; Mali; Senegal; Guinea; Sierra Leone; Liberia; Burkina Faso; Niger; Chad; Central African Republic; Congo; Democratic Republic of the Congo; Gabon; Equatorial Guinea; São Tomé and Príncipe; Angola; Mozambique; Madagascar; Mauritius; Seychelles; Comoros; Mauritania; Western Sahara; Bahrain; Kuwait; Oman; Qatar; Saudi Arabia; United Arab Emirates; Yemen; Iraq; Iran; Israel; Jordan; Lebanon; Palestine; Syria; Turkey; Armenia; Azerbaijan; Georgia
Sensor	Planar CMOS sensor 640*480
Light Source	Red LED(Aiming)+White LED(lighting)

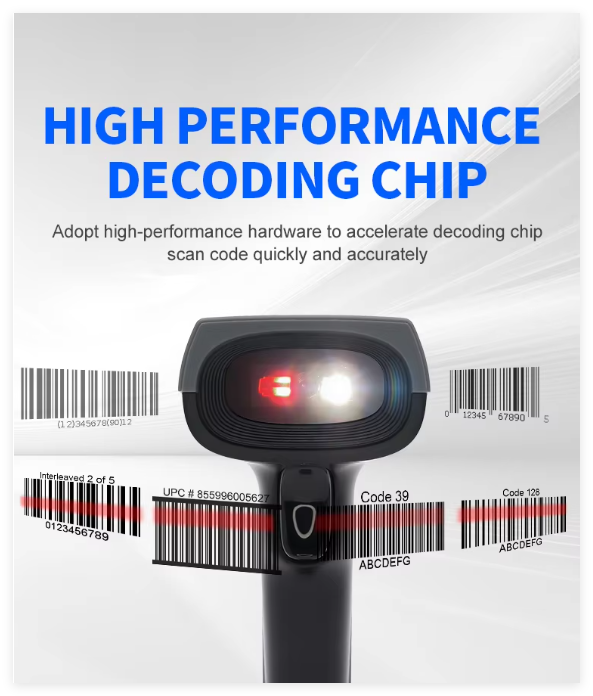

Processor	32-bit ARM MCU + BGA
Motion tolerance	QR： 25cm/sec
Resolution	5mil
Bit Error Rate	1/5000000
Scanning Method	Image
Trigger Mode	Manual ；Continuous scanning;Auto-sensing

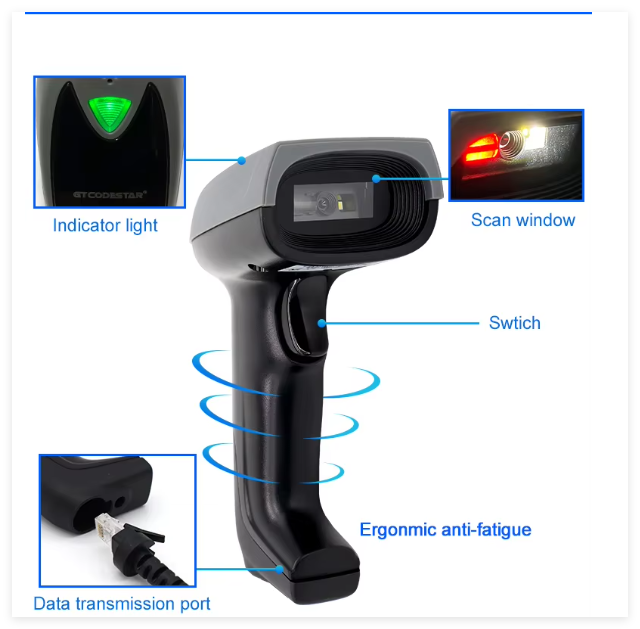

Indicator	Buzzer, Indicator Light（LED）
Contrast	25%
1D	●Code25-Interleaved ●Code25-Standard ●Code25-Matrix ●Code39 ●Code93 ●Code128 ●EAN-8 ●EAN-13 ●UPC-A ●UPC-E ●Industrial 25 ●Interleaved 25 ●Matrix 25 ●Codabar(NW7) ●MSI Plessey ●GS1-128 ●ISSN ●ISBN ●Code 11 ●Standard 25 ●Plessey ●Telepen ●UCC/EAN-128 ●GS1 DataBar(TLC-39) ●GS1 DataBar Expanded ●GS1 DataBar Limited ●GS1 DataBar Stacked ●GS1 DataBar Stacked Omnidirectional
2D	●Data Matrix ●QR ●PDF417 ●Micro QR ●Micro PDF417 ●Composite Codes ●Aztec ●MaxiCode ●Han Xin Code
Scanning Angle	Roll360°，Pitch45°，Yew45°
Scanning Depth	Code39 10mil：6cm - 25cm Code39 20mil：3cm - 45cm Code39 30mil：3cm - 60cm QR 20mil：3cm - 35cm QR 30mil：3cm - 50cm QR 40mil：3cm - 65cm PDF417 20mil：3cm - 30cm PDF417 30mil：3cm - 45cm
Environment Parameter
IP Grade	IP54
Operating Temp.	0 to 50℃ / 32 to 122℉
Storage Temp.	0 to 50℃ / 32 to 122℉
Operating Humidity	20% to 85%（No Condensation）
Storage Humidity	20% to 85%（No Condensation）
ESD Protection	15KV air discharge
Shock Resistance	1.5m free fall on concrete surface
