| No. | Parameter | Type | Specification |
|---|---|---|---|
| GT-8800F Technical Parameter | |||
| 1 | Model | GT-8800F | |
| 2 | Item | Desktop 2D Image Barcode Scanner | |
| Physical Parameter | |||
| 3 | Material | ABS+PC | |
| 4 | Power Supply | DC 5V ±5% | |
| 5 | Electric Current | 0.18A（standby）；0.25A（working）；0.32A（maximum） 【Average electric current】 |
|
| 6 | Power Consumption | 0.90W（standby）；1.25W（working）；1.60W（maximum） 【Average power consumption】 |
|
| 7 | Weight | 308.0g±5g（Without cable） | |

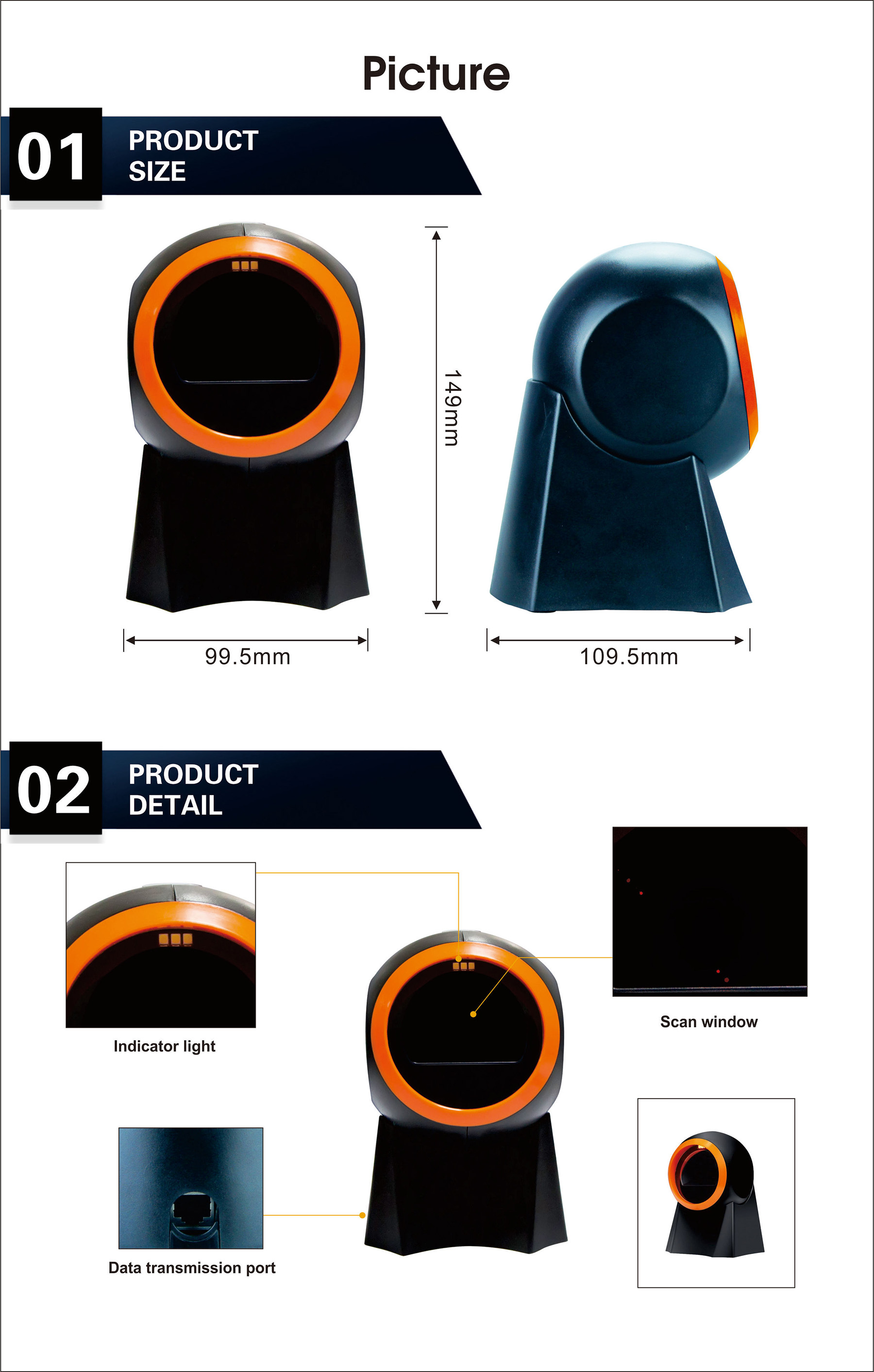

| 8 | Size | L*W*H: 110.0 * 99.3 * 149.6（unit：mm） | |
| 9 | Color | Black+orange | |
| Performance Parameter | |||
| 10 | Interface | USB | |
| 11 | System Supported | Linux，Android，Windows XP、7、8、10，MAC | |
| 12 | Language Supported | English-America；Belgian；Finnish；French；German；Italian；Swedish；English-United Kingdom；Danish；Norwegian；Spanish；Portuguese；Turkish-Q；Turkish-F；Japanese；Russian；Czech；Thai；Ukrainian；Portuguese-Brazil；Greek；Hungarian；Dutch；Polish；Romanian；Slovak； 【Virtual keyboard support】 |
|
| 13 | Sensor | Planar CMOS sensor 480 * 640 | |
| 14 | Light Source | White LED | |
| 15 | Professor | 32-bit ARM MCU + DSP | |
| 16 | Motion Tolerance | 35cm/sec【10mil QR】 | |
| 17 | Resolution | Code39 ≥5mil | |
| 18 | Bit Error Rate | 1/5,000,000 | |
| 19 | Reading Mode | Image | |
| 20 | Trigger Mode | Auto-Sensing | |
| 21 | Prompt Mode | Buzzer, Indicator Light（Green LED） | |
| 22 | Scanning Angel | Roll 360°，Pitch ± 55°，Yew ± 55° | |
| 23 | Invoicing function | Support | |
| 24 | Print Contrast | ≥30% | |
| 25 | Decoding Capability |
1D | ■UPC-A ■JAN/EAN-8 ■JAN/EAN-13 ■Code 128 ■Code 39 ■Codabar ■Code 93 ■Interleaved 2 of 5 ■UPC-E ■UCC/EAN 128 ■GS1-128 ■ISBN-13 ■Industrial（Standard）2 of 5 ■Code 11 ■MSI Plessey ■Code32 ■GS1 Composite ■GS1 Databar ■Composite ■Matrix 2 of 5 |
| 26 | 2D | ■PDF417 ■Micro QR Code ■QR Code ■Aztec code ■Data Matrix | |
| 27 | Scanning Depth | QR Code 12.50mil（7 bytes）：0cm - 11cm PDF417 9.17mil（7 bytes）：0cm -11cm Data Matrix 12.50mil（8 bytes）：0cm - 7cm Code 128 7.50mil（15 bytes）：1cm - 10cm EAN13（10mil）：3cm - 12cm |
|
| Environment Parameter | |||
| 28 | IP Grade | IP52 | |
| 29 | Operating Temp. | 0 to 50℃ / 32 to 122℉ | |
| 30 | Storage Temp. | 0 to 50℃ / 32 to 122℉ | |
| 31 | Operating Humidity | 20% to 85%（No Condensation） | |
| 32 | Storage Humidity | 20% to 85%（No Condensation） | |
| 33 | ESD Protection | 15KV air discharge | |
| 34 | Shock Resistance | 1.2m free fall on concrete surface | |
| 35 | Ambient Light | 0~100000LUX | |
| PS: This parameter is subject to change without notice. | |||
