- 90M ribbon capacity for lightweight printing, minimizing consumable waste.
- Easier ribbon replacement with the top cover; adjustable paper width.
- Supports multi-size and multi-media printing; large memory capacity: 8MB Flash, 8MB SDRAM.
- 90M ribbon capacity for lightweight printing, minimizing consumable waste.
- Easier ribbon replacement with the top cover; adjustable paper width.
- Supports multi-size and multi-media printing; large memory capacity: 8MB Flash, 8MB SDRAM.
| Parameter Category/Name | Specification |
|---|---|
| Printing | |
| Resolution | 203 DPI |

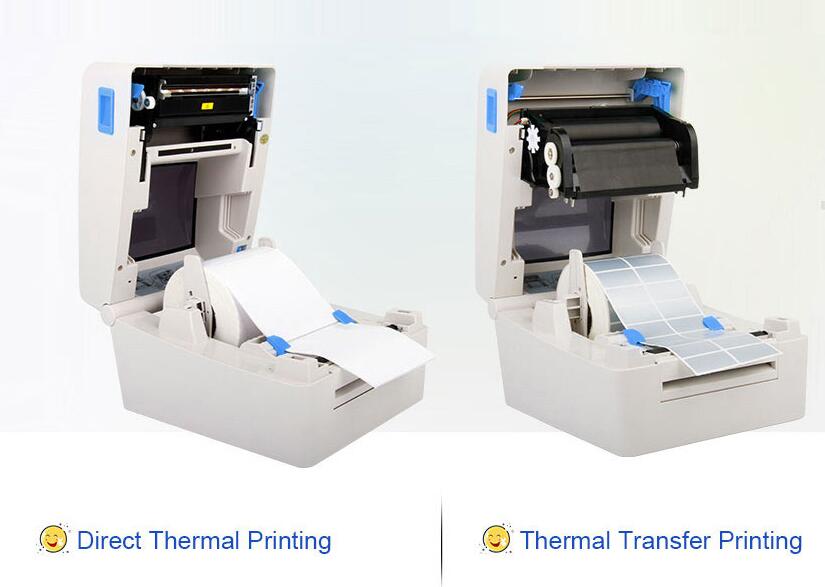

| Printing method | Thermal transfer/Direct thermal |
| Max. print speed | 127mm (5")/s |
| Max. print width | 108mm (4.25") |
| Max. print length | 1178mm (70") |
| Media | |
| Media type | Continuous, gap, black mark, fan-hold and punch hole |
| Media width | 25.4-118mm (1" - 4.6") |
| Media thickness | 0.06~0.254mm |
| Media core diameter | 25.4 ~ 50.8mm (1" - 2") |
| Ribbon length | Max. 90m |
| Ribbon width | 25.4 ~ 110mm (1" - 4.3") |
| Lable length | 10 ~ 1778mm |
| Lable roll capacity | 125 mm OD (outer diameter) |
| Ribbon core inner diameter | 12.7 mm |
| Performance Features | |
| Processor | 32-bit CPU |
| Memory | 8MB Flash Memory, 8MB SDRAM, Flash memory can be expanded |
| Interface | Standard: USB, Optional: Bluetooth/WIFI/TF card |
| Sensors | 1. Gap sensor 2. Cover open sensor 3. Black mark sensor 4. Ribbon end sensor |
| Fonts/Graphics/Symbologies | |
| Internal fonts | 8 alpha-numeric bitmap fonts, Windows fonts are downloadable |
| 1D bar code | Code 39, Code 93, Code 128UCC, Code 128 subsets A/B/C, Codabar, Interleaved 2 of 5, UPC A/E, EAN 8/13, Code 11, MSI Plessey, POSTNET, UCC/EAN 128 |
| 2D bar code | PDF-417, Maxicode, DataMatrix, QR code |
| Rotation | 0°、90°、180°、270° |
| Emulation | TSPL、EPL、ZPL、DPL |
